A30R10 HG Position 1 Profiler
This CNC tool executes the stone grinding to prepare the slab for the the following smoothing phase of the profiling process. This is due to the high performance in terms of cutting speed, and removal capacity supplied by the patented interchangeable sectors of the A30R10 HG Position 1 Profiler.

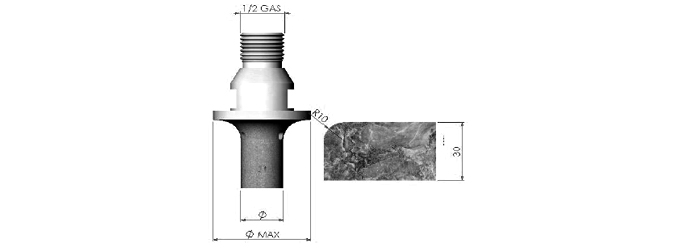

The following tables provide you with the measurements of the A30R10 1/2 Gas P1 grinding wheel and the specification of all 6 of the profiling wheels respectively.
A30R10 Specifications
| Max D | 44mm |  |
|---|---|---|
| Min D | 20mm | |
| Rad | 10mm | |
Marble/Granite Profiling Bits
| Position | Stock Removal | Rotating Speed | Feed Rate mm/min | Feed Rate inch/min |
|---|---|---|---|---|
| 0G | 0 | 5500 RPM | 800-4000 mm/min | 32-160 inch/min |
| 1G | 0 | 5500 RPM | 800-5000 mm/min | 32-200 inch/min |
| 2MG | 0.019 inch (0.5 mm) | 5500 RPM | 800-4000 mm/min | 32-200 inch/min |
| EXC3 | 0.011 inch (0.3 mm) | 5500 RPM | 800-5000 mm/min | 32-200 inch/min |
| 4 | 0.003 inch (0.1 mm) | 3000 RPM | 600-5000 mm/min | 24-200 inch/min |
| 5 | 0.003 inch (0.1 mm) | 3000 RPM | 600-5000 mm/min | 24-200 inch/min |
| 6 | 0.0019 inch (0.05 mm) | 3000 RPM | 600-5000 mm/min | 24-200 inch/min |
